Electric Fence Intrusion Alarm System for perimeter security

• Model Number:TT-X8
• Frame Material:Metal
• Metal Type:Aluminium/Steel
• Frame Finishing:Not Coated
• Feature:Easily Assembled
• Usage:Farm Fence, Electric fence, security system for home
• Type:Fencing, Trellis & Gates, security fence, Fence Accessories, Fence Hardware, Fence Posts, Fence Rails, chain link fence, Electric fence
• Service:instruction book, video of installation
• Product name:Electric Fence
• Function:Peripheral protection
• Peak value of high voltage pulse:5000V~10000V
• Low Voltage Pulse Peak Value:500V~1000V
• Pulse duration:≤0.1S
• Pulse frequency:1S

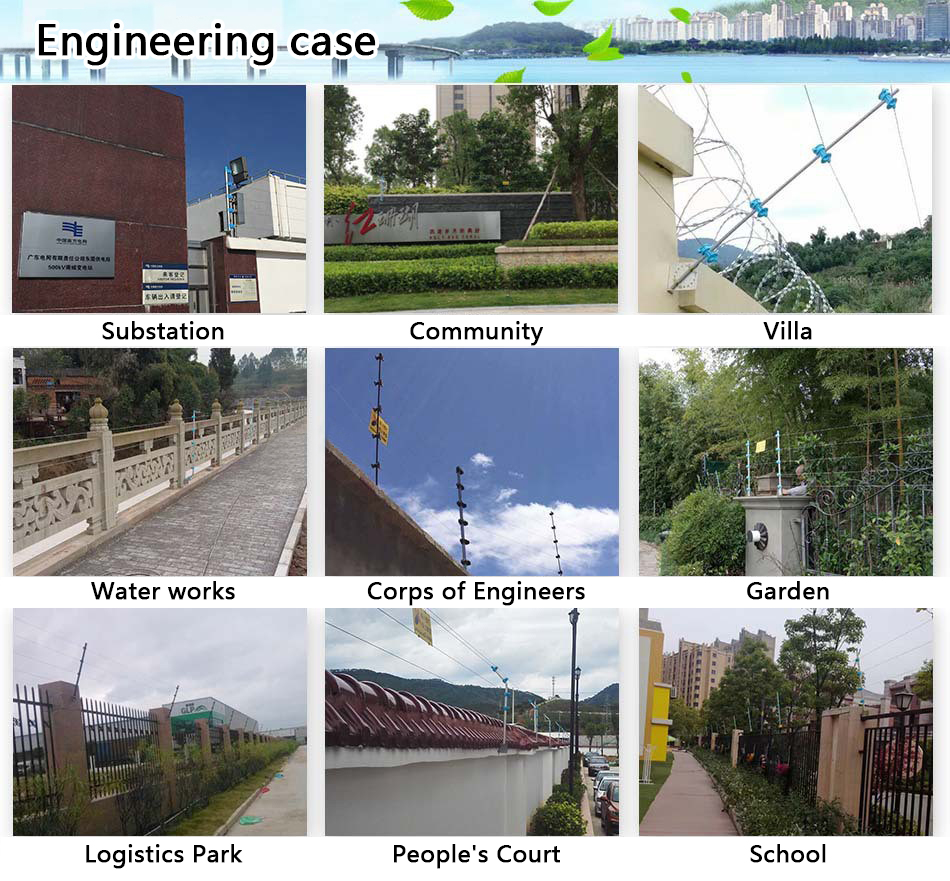

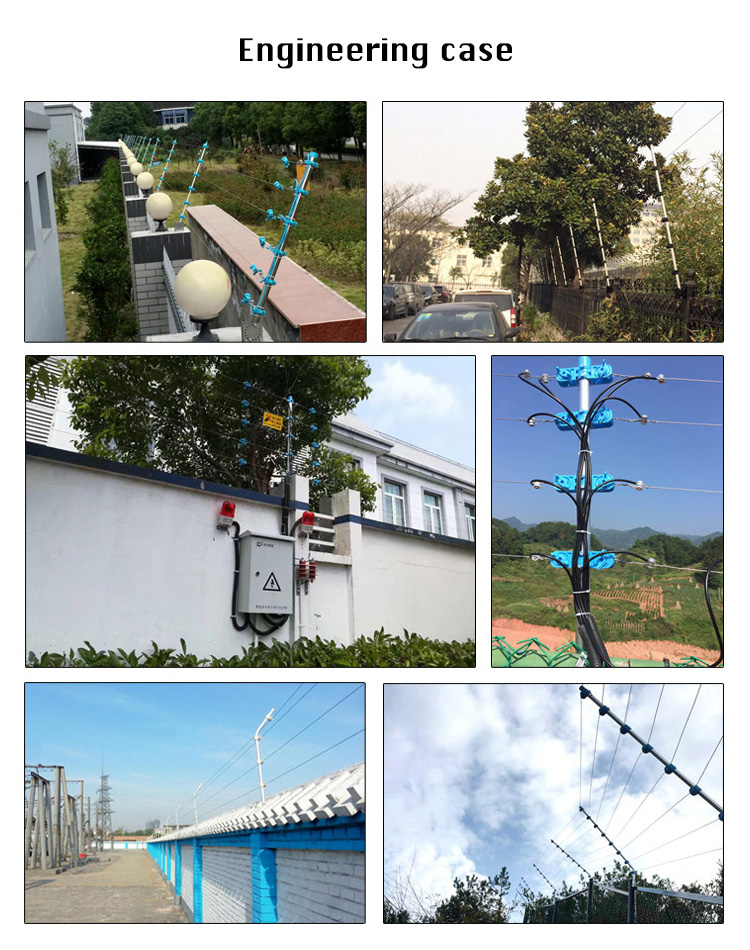

• Use environment:Factories, Villas, Camps, Substations, Residential Areas
• Commercial Buyer:TV Shopping
• Season:Everyday

Price Description:

The price of an electric fence mainframe and a basic configuration of the electric fence alarm system are marked. The prices of different configurations will vary. For details, please consult us.

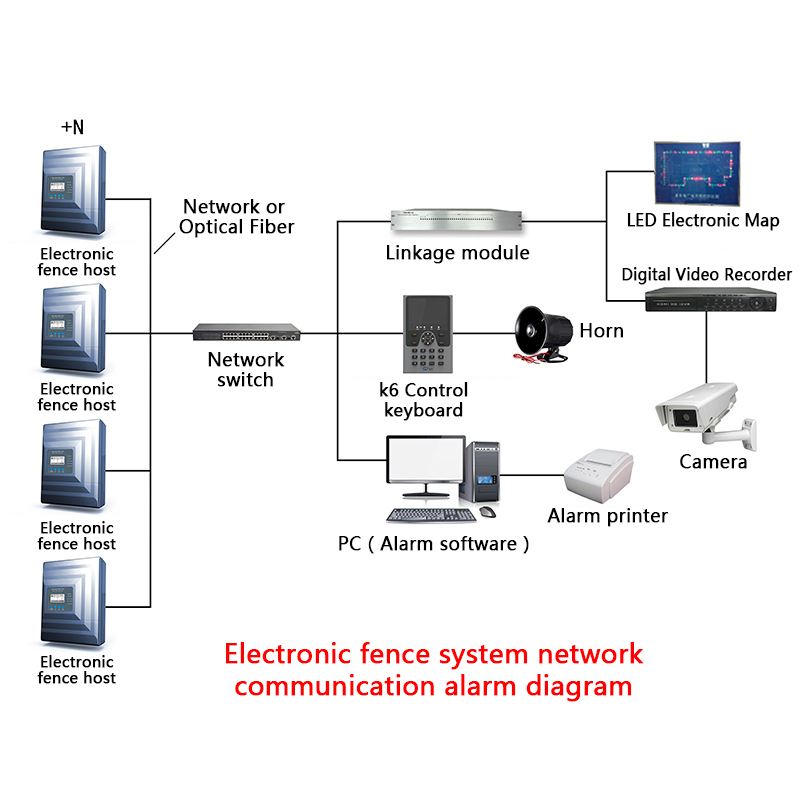

Electric fence alarm system Network communication interface:

Host built-in network module, which can communicate directly with the network, is more stable and reliable than the external network module.

Anti-bypass shear alarm:

The host computer of electronic fence can effectively detect the conductor bypass (equipotential spanning) behavior of the intruder, and immediately give an alarm to make up for the fatal loopholes of the traditional electronic fence.

Single wire contact alarm:

Intelligent algorithm can identify the intruder touching the front single line of the electric fence and give an alarm. Contact alarm has revolutionized the way of electronic fence alarm, and can distinguish the touch between human body and small animals.

Multiple communication modes:

Host built-in ethernet, RS485 rich interface, improve product communication connectivity and stability, to meet customer needs of different transmission schemes

High Voltage  Electric Fence Anti-theft Alarm System  Energizer  Security Fence Wire Posts Prevent Intrusion

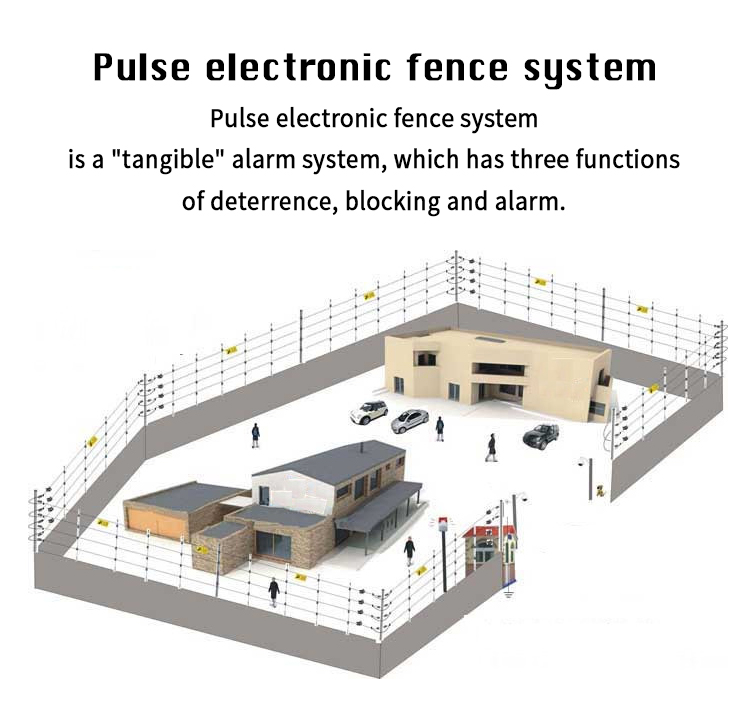

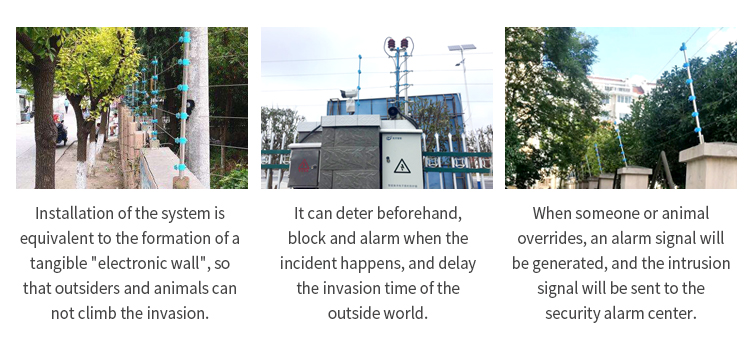

Purpose of electric fence

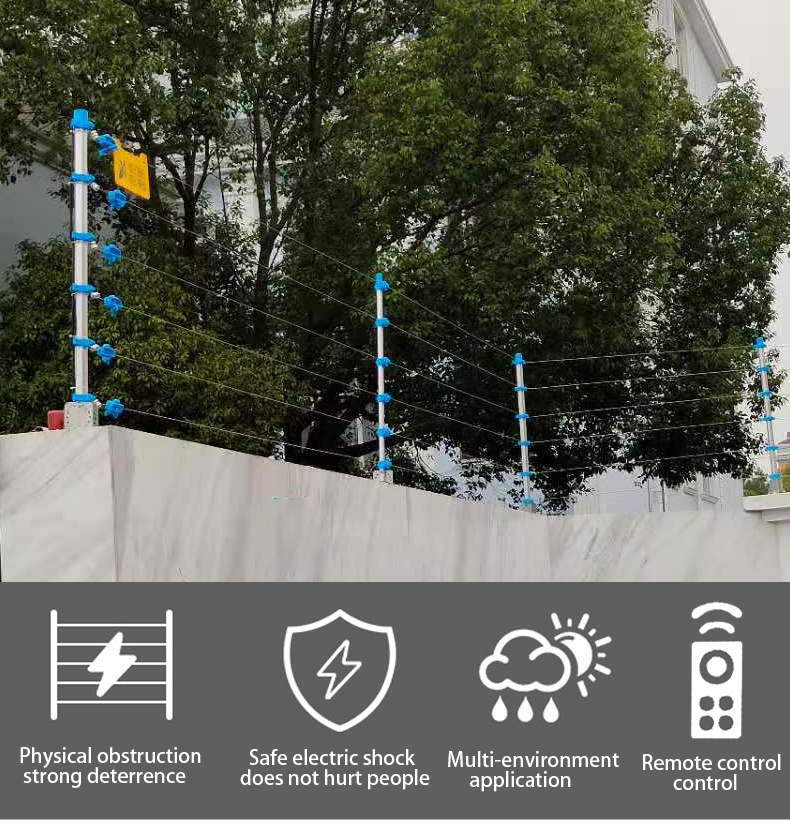

The electric fence has strong deterrence, mainly to prevent crossing and prevention. The intruder will be given instant pulse electric shock and an audible and visual alarm will be sent. The high-voltage shock pulse sends out a high voltage of 4-7 kV every 1 second. There will be numbness and pain when you touch it

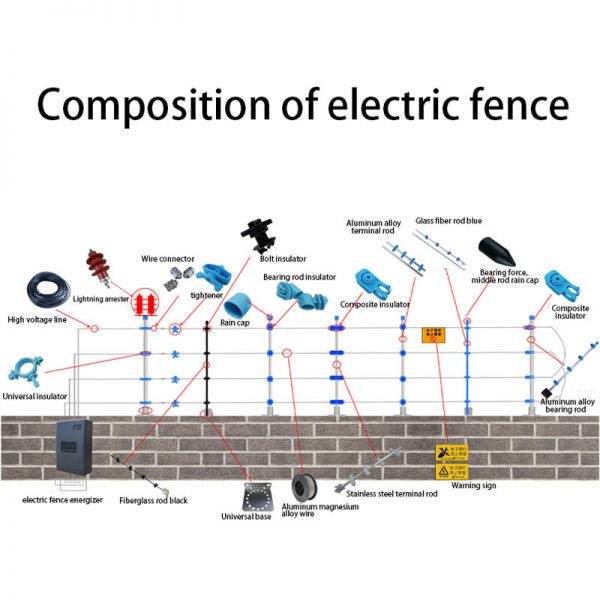

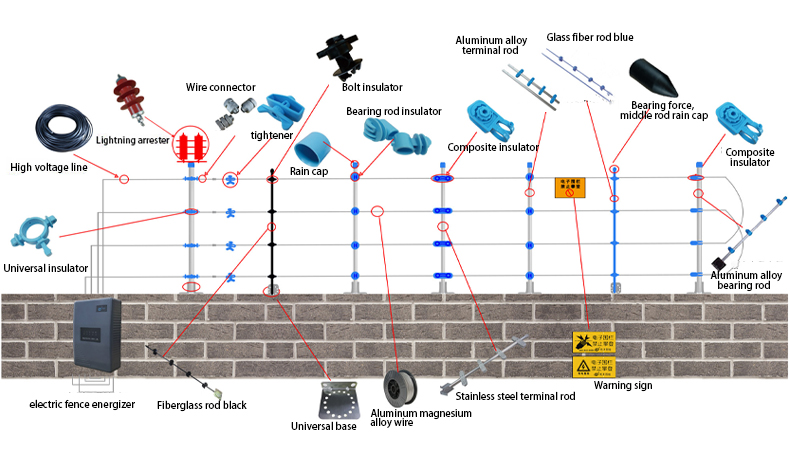

Composition of electric fence

Product features

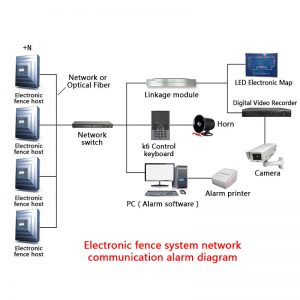

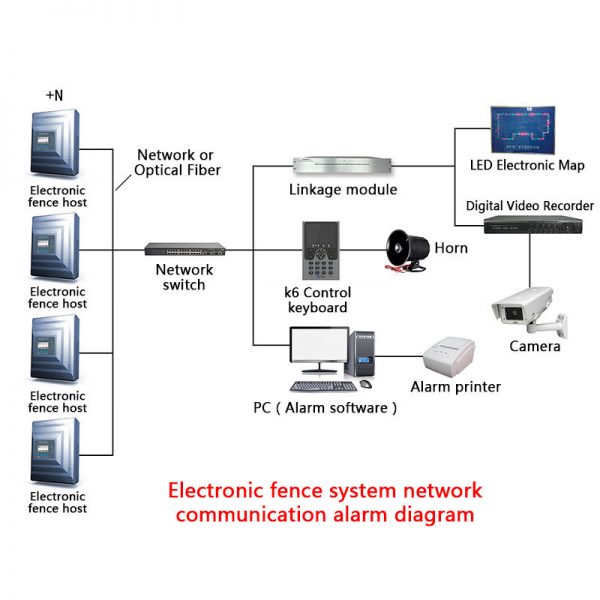

1. Multi-cascade network: The host computer can form a multi-level management system with intelligent keyboard and management platform software to provide customers with overall solutions.

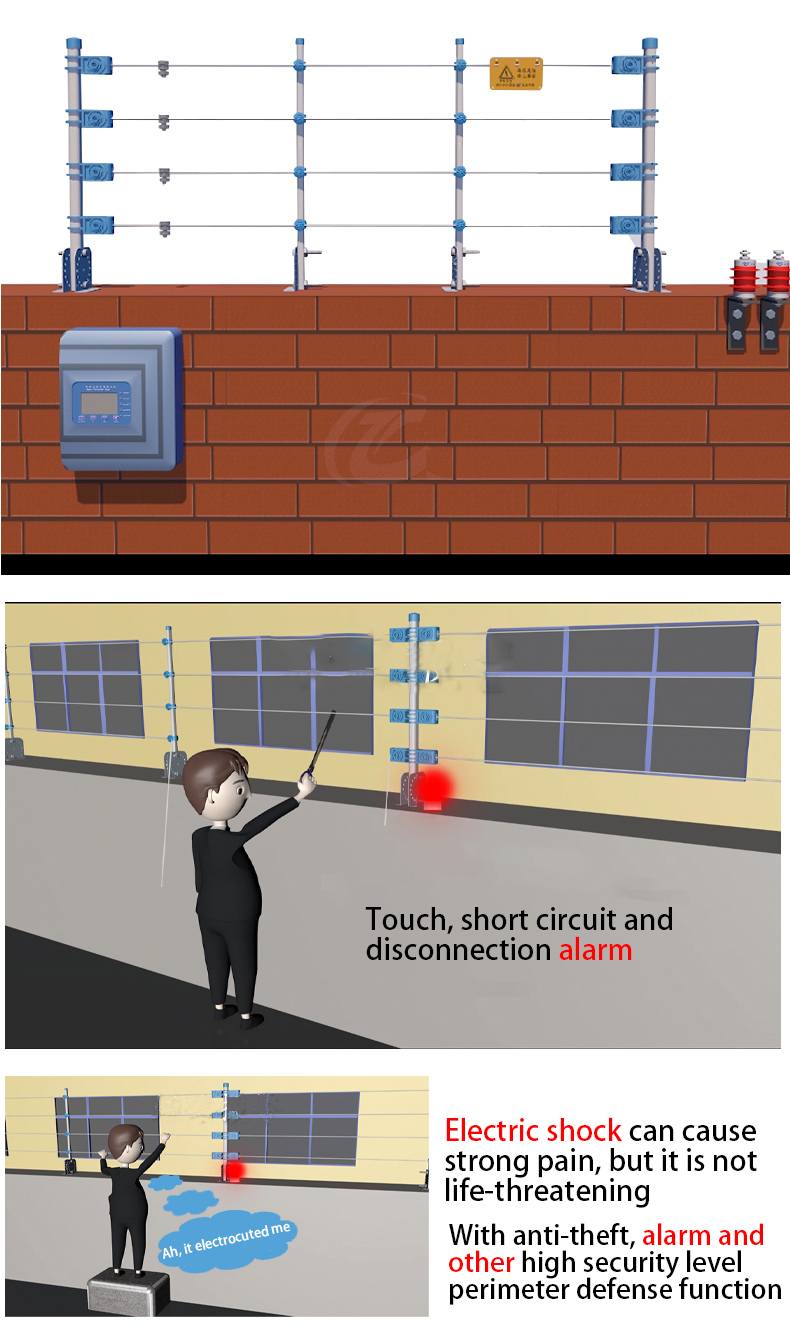

2. Specific functions: contact, bypass, disconnection, short circuit, anti-disassembly, power loss, failure, and other alarm methods.

3. At present, there are 5000V-10000V high-voltage pulsed electricity at every point of each line on the front fence, which makes the intruder inorganic to take advantage of.

4. Screen display: 3.5-inch LCD display displays the working mode, running time, defense area address, contact sensitivity, voltage value and other information of the host directly.

5. Power supply mode: support 220V, DC24V power supply, can also be equipped with 12V lithium batteries, after power failure, continuous working hours up to 24 hours.

6. Voltage Adjustable: Low Voltage 600-1500 High Voltage 4000-7500 Voltage Adjustable, Use more at ease

7. Remote control mode: The remote controller can be used to separate the distribution and withdrawal of the pulse host, which is more convenient for the use of small places. (Optional function)

8. Alarm input: It can input the switch signal directly, one defense zone all the way.

9. Uniqueness: Host buzzer can be switched on and off. The baud rate is optional and the alarm time is 1-99 seconds.

Product parameters
