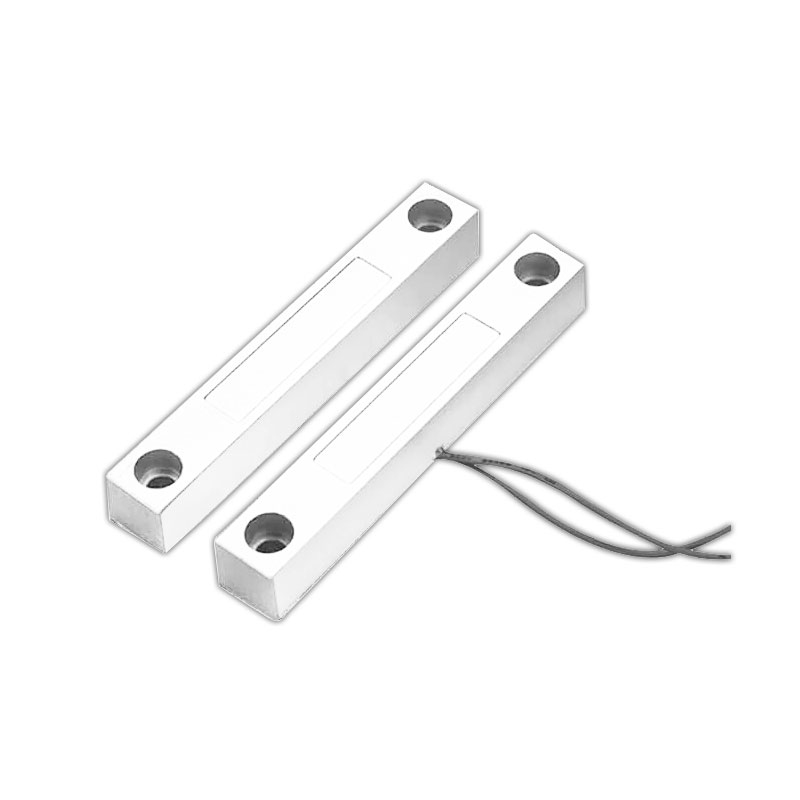

The RSW-M1 is a heavy duty hard wired reed switch, designed for window and door applications.
Product features:
Heavy duty magnetic contact switch
Large magnet sensor gap, up to 50mm
Normally closed (NC) reed switch output
10W maximum contact rating ( up to 100V, 0.5A)
250mm sensor leads (22 AWG / Ø0.64mm)
Robust casing of zinc alloy construction
Surface Mounted, screws included
Dimensions 106 x 16 x 16mm
Available in silver, white or brown casing.
