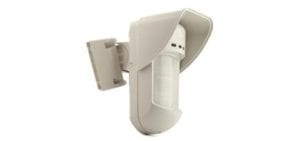

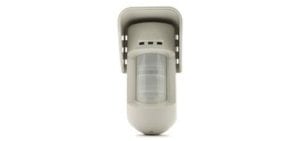

WatchOUT™ DT eXtreme
Providing reliable intruder detection in outdoor environments is a huge challenge that has been met above all expectations by the award winning WatchOUT™ detector series.
Based on market demand, the improved WatchOUT™ eXtreme provides better 24-hour protection against vandalism, with both Active IR Anti-mask and Proximity alerts.
These benefits, together with RISCO Group’s unique outdoor detection technologies – Sway Recognition™ and Digital Correlation™ – take WatchOUT™’s performance to the extreme.
Features
- Coverage: Wide angle: 15m (50’) 90°, Long-range: 23m (75’) 5°, Barrier: 15m (50’) 5°
- Pet friendly up to 70cm (2’4’’)
- Two microwave and two PIR channels
- Microwave anti-collision allows back-to-back and face-to-face installations
- Flexible mounting height 1m to 2.7m (3’ to 8’) and wide range of professional swivel brackets protective hood and IP65 environment rating
- RISCO Bus dramatically reduces cabling, installation equipment and labor costs, while providing benefits of remote services
- Opto relays for defeating large magnets
- Active IR anti-mask and Proximity alerts
- Model names:
- RK315DT WatchOUT DT Extreme

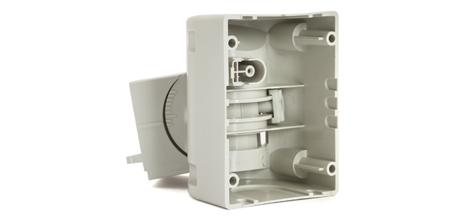

- RA300B Barrier swivel for installation 90° to the mounting surface
- RA300P Pole adaptor for professional installation on poles
- RA300C Conduit adaptor for installation with wiring external to the wall, when not
- using the standard swivel
- RA300SC Swivel Metal Conduit for installation with wiring external to the wall, when
- using the standard swivel
- RA300HS WatchOUT without electronics for “scarecrow” installation
- RA300VC WatchOUT cover with adaptor for WATEC CCD camera (camera not
- included)
Technical Specifications
- Wide angle coverage: 15m (50ft) 90°
- Long-range coverage: 23m (75ft) 5°
- Barrier coverage: 15m (50ft) 5°
- RISCO Bus or relay installation
- Detection Channels: Two microwave and two PIR channels
- 2 PIR channel detection method: Digital Correlation™ Technology
- 2 Microwave channels detection method: Sway Recognition™ Technology
- Active IR Anti-mask: Detects beyond hood
- Anti-Sabotage: Directional proximity alert using 2 microwave channels
- Mounting height: 1m to 2.7m (3’3” to 8’10”), 2.2m (7’2”) for barrier, and Long Range lenses
- Pet immunity: Animals up to 70cm (2’4”) head height with no weight limitation
- Dirty lens alert
- Operating voltage : 9-16 VDC
- Alarm contact: NC, 100mA, 24 VDC
- Tamper contact: NC. 100mA, 24 VDC
- Mask/ Fault contact: NC , 100mA, 24 VDC
- Dirty lens output: 70mA open collector
- Environment rating: IP 65
- Operating temperature” -30°C to 60°C (-22°F to 140°F)
- Dimensions: 230 x 121 x 123mm (9” x 4.76” x 4.85”)
